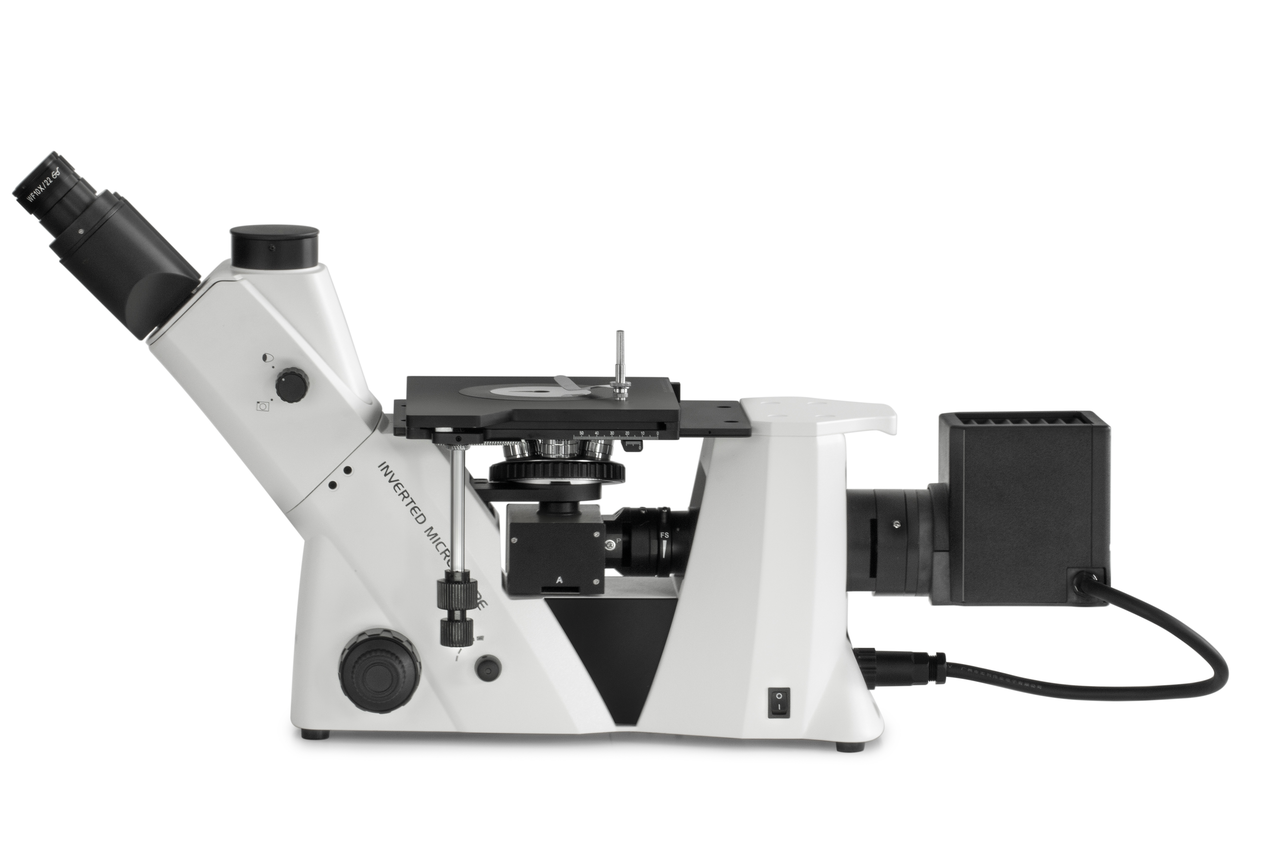

Metallurgical Inverted Microscope KERN OLM 171
Availability:In stock
SKU
LBX-KRN-2474

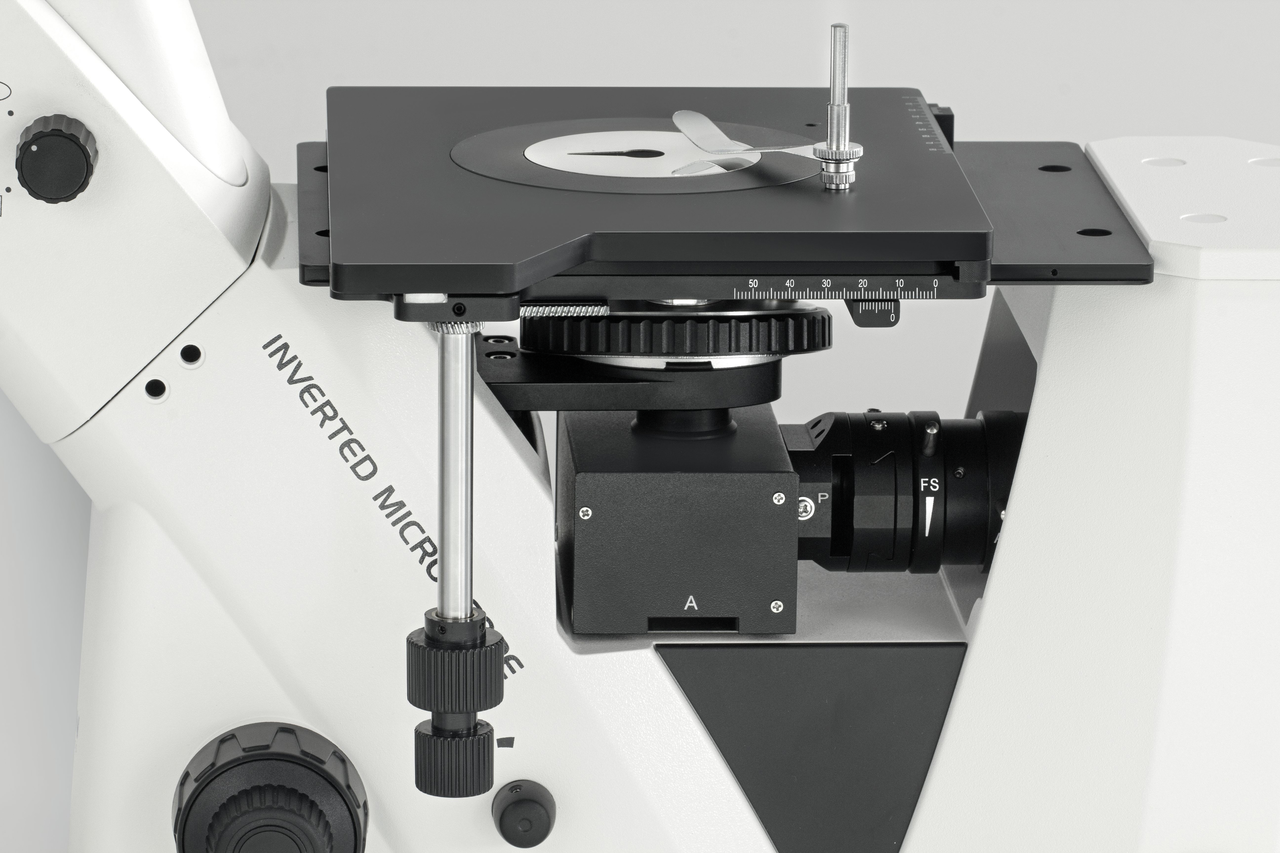

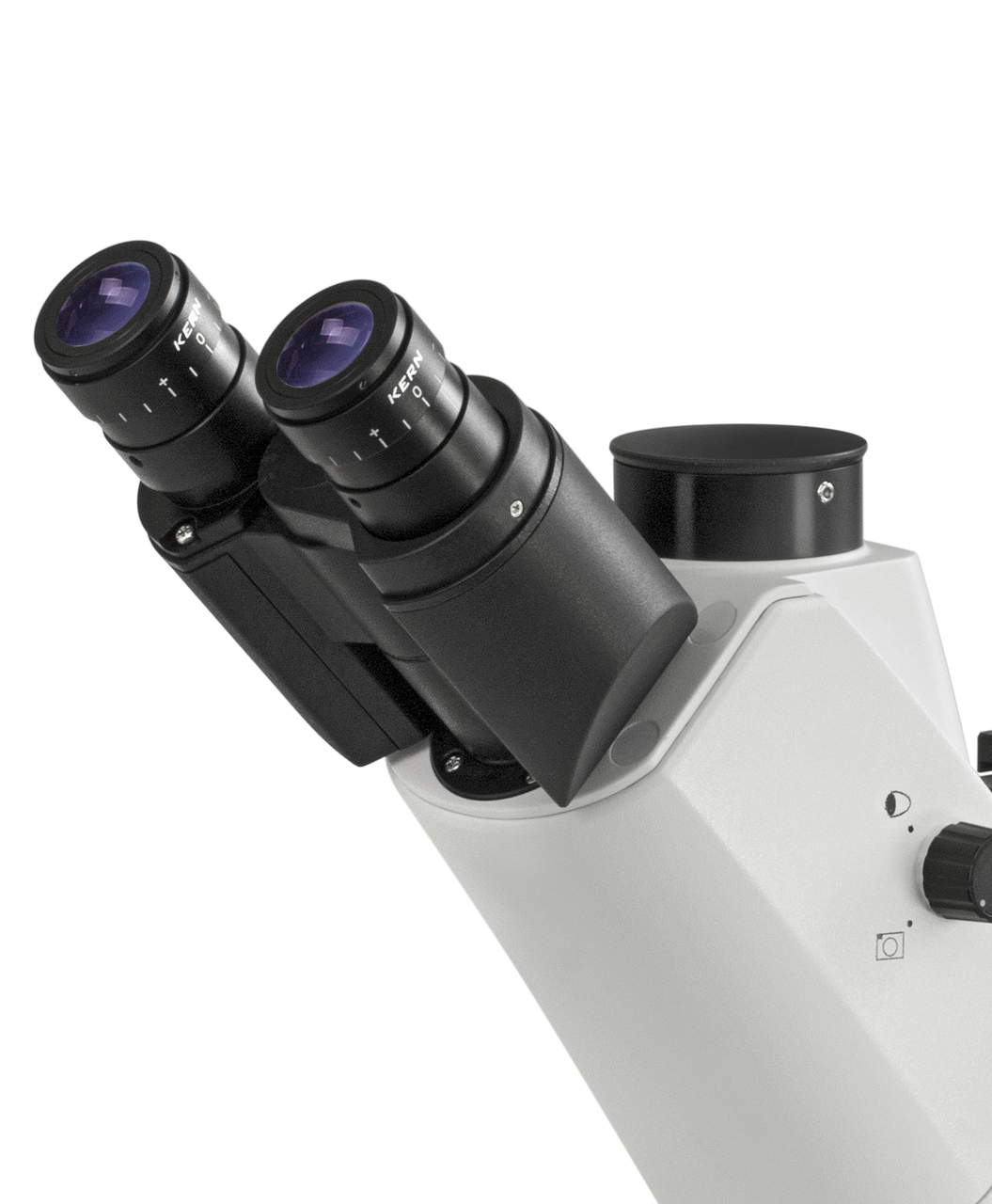

The KERN OLM 171 is a high-performance inverted metallurgical microscope designed for professional applications. Its ergonomic and robust build, combined with a 50W halogen illumination unit, ensures precise surface quality testing. Featuring a trinocular eyepiece, polarising unit, and large mechanical stage, it’s ideal for metallurgy, material testing, and quality assurance. Optional objectives and C-mount adapter available. Includes dust cover and user instructions.
BrandKern
| Product Name | Metallurgical Inverted Microscope KERN OLM 171 |
|---|---|
| Weight | 1.000000 |
| Part No. | LBX-KRN-2474 |
| Supplier Item Code | OLM 171 |
| Input voltage power supply Max | 100 - 240 V |
| Gross weight | 17 kg |
| Total packaging weight | 4032 g |
| Net weight | 13 kg |
| Tube angle of inclination | 30° |
| Illuminance | Reflected light |
| Optical system | Infinity |
| Tube type | Trinocular |
| Optical System Technical Data | |
|---|---|
| Optical system | Infinity |
| Tube type | Trinocular |
| Ocular magnifications | 10 x |
| Ocular visual field | 22 mm |
| Illuminance | Reflected light |
| Illumination type transmitted light | Halogen |
| Illumination intensity transmitted light | 50 W |
| Condenser type | Standard |
| Kondensor-Montage | Fixed |
| Focusing mechanism | Coaxial coarse and fine drive |
| Fine drive minimum | 0.002 mm |
| Dimension (W×D×H) | 747×271×379 mm |
