Phase Contrast Microscope KERN OBL 156
Availability:In stock
SKU
LBX-KRN-2413
Discover the OBL 156, a high-quality phase contrast microscope designed for versatility and precision. Equipped with a strong, dimmable 3W-LED illumination and a pre-centred phase contrast condenser, it ensures superior imaging of translucent and low-contrast samples. Its large mechanical stage supports dual specimens, while a variety of accessories, including eyepieces and filters, enhance functionality. Ideal for applications in hematology, microbiology, and more.
BrandKern
| Product Name | Phase Contrast Microscope KERN OBL 156 |
|---|---|
| Weight | 1.000000 |
| Part No. | LBX-KRN-2413 |
| Supplier Item Code | OBL 156 |
| Input voltage power supply Max | 100 V - 240 V AC 50/60 Hz 0,3 A |
| Gross weight | 8 kg |
| Total packaging weight | 2012 g |
| Net weight | 6 kg |
| Tube angle of inclination | 30° |
| Illuminance | Transmitted light |
| Optical system | Infinity |
| Tube type | Trinocular |
| Technical Data | |
|---|---|
| Optical system | Infinity |
| Tube type | Trinocular |
| Ocular magnifications | 10 x |
| Ocular visual field | 20 mm |
| Standard objectives | 4×, 100×, PH 10×, PH 40× |
| Lens quality | Infinity E-Plan/Plan |
| Nosepiece screw-in locations | 4 |
| Illuminance | Transmitted light |
| Illumination type transmitted light | LED |
| Illumination intensity transmitted light | 3 W |

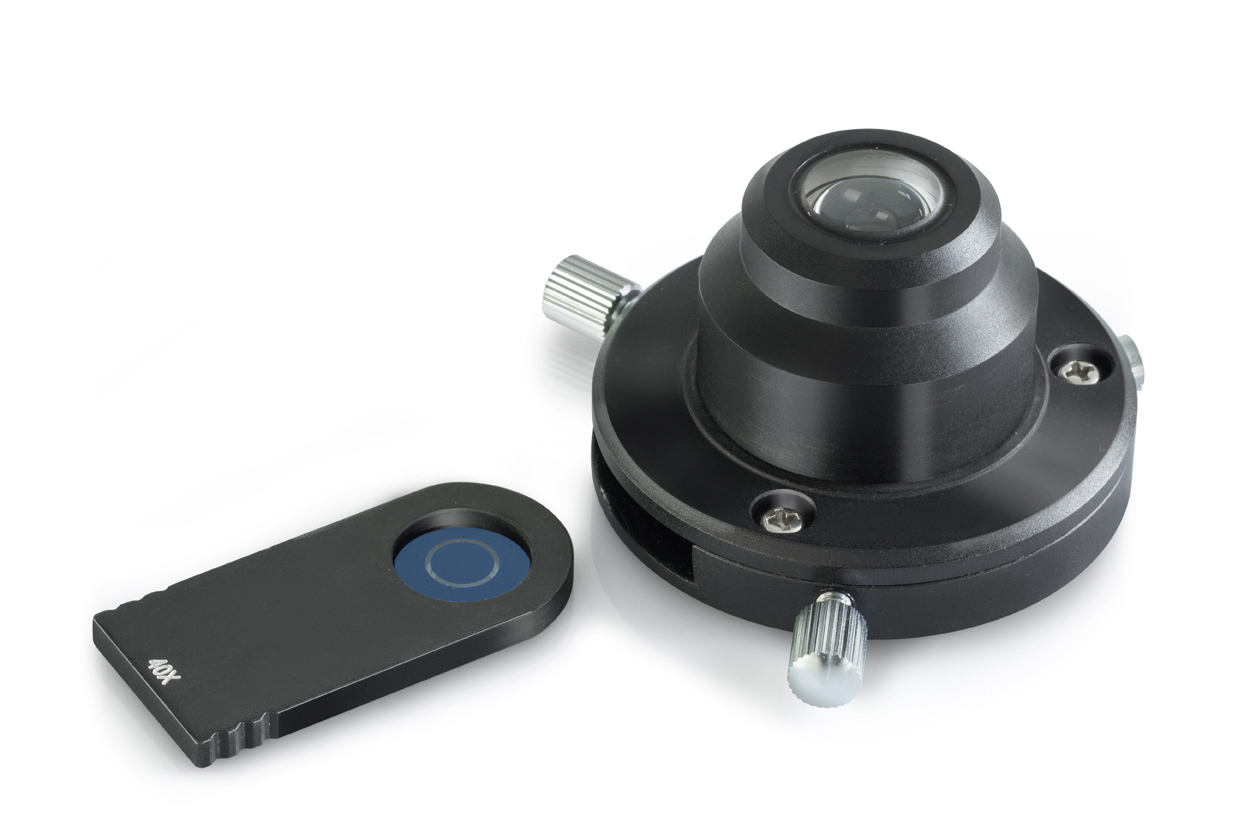

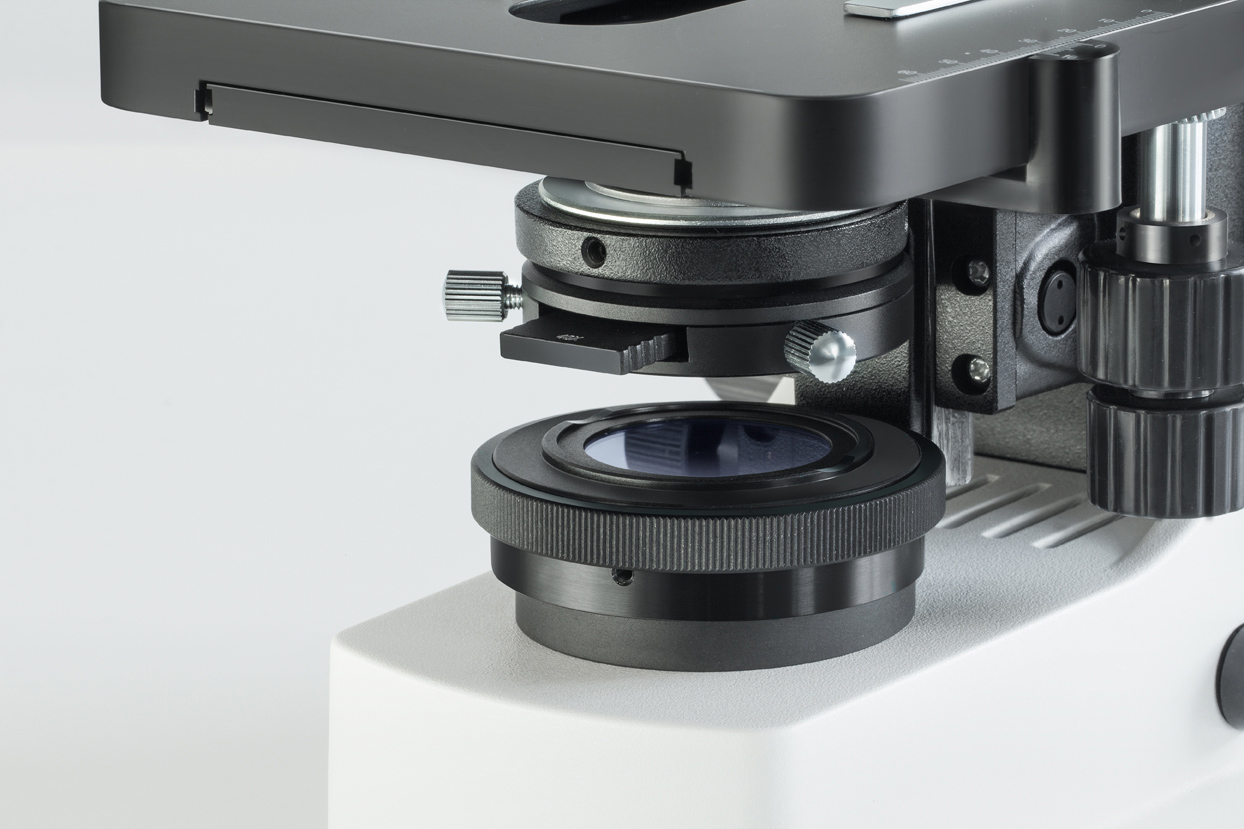

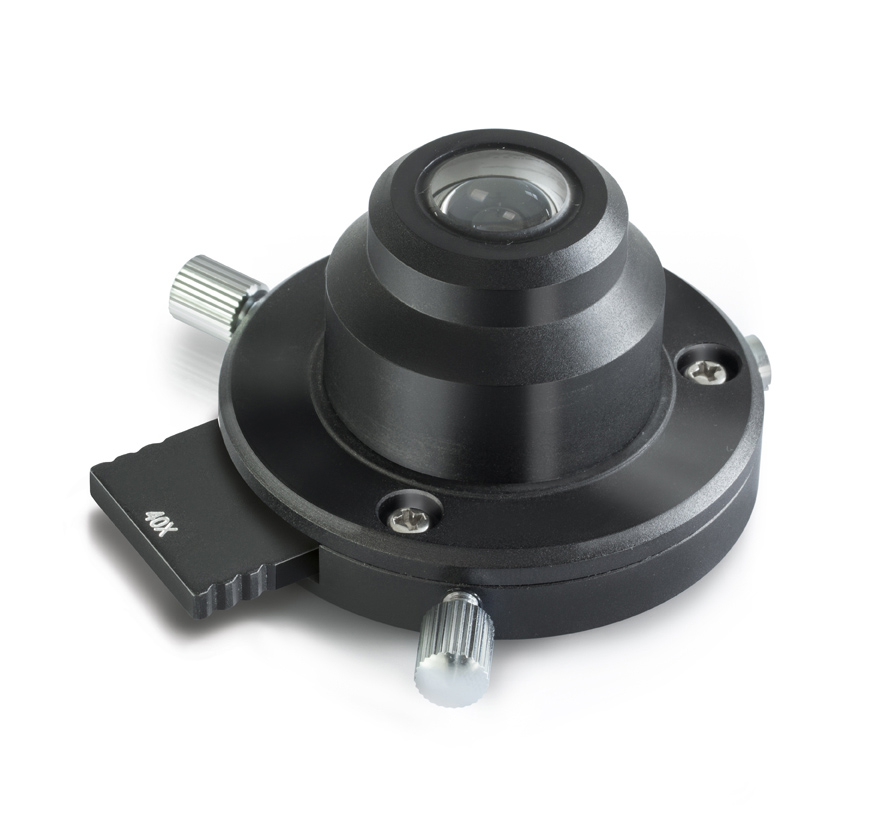

| Condenser type | Phase contrast condenser |
| Condenser Aperture | 1.25 |
| Condenser Mounting | fixed |
| Focusing mechanism | coaxial coarse and fine drive |
| Fine drive minimum | 0.002 mm |
| Dimension (W×D×H) | 394×185×377 mm |
