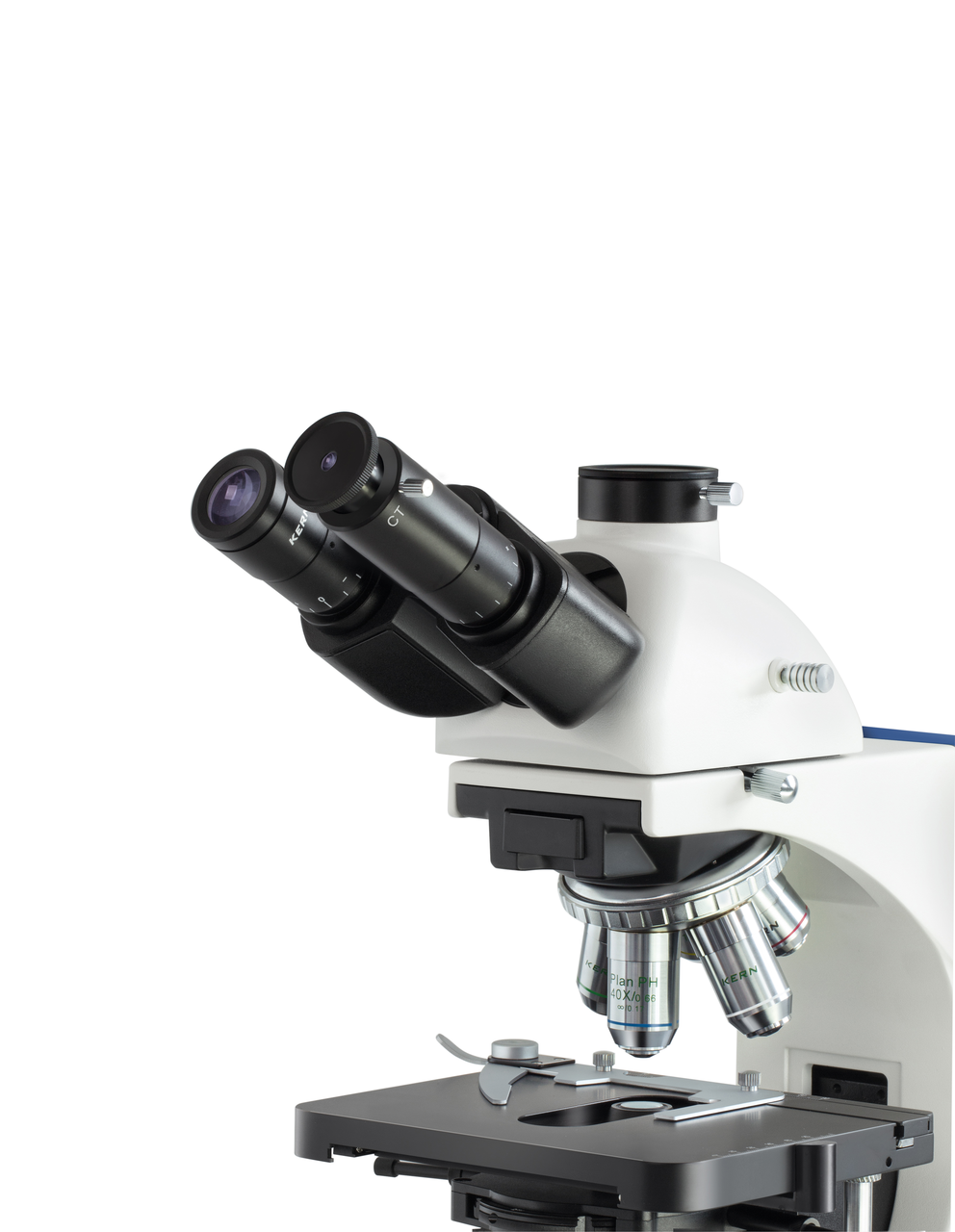

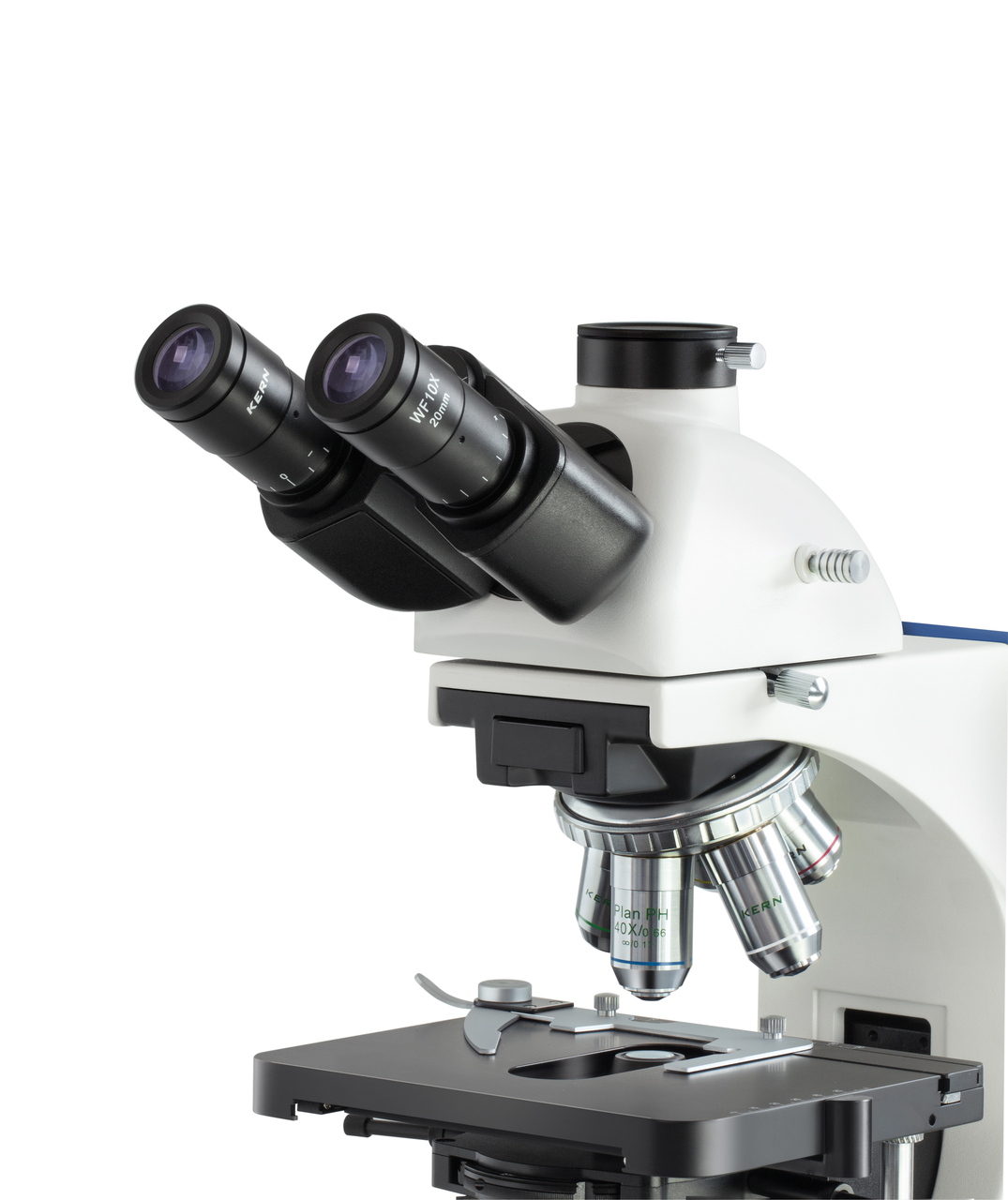

Phase Contrast Microscope KERN OBN 158
Availability:In stock
SKU
LBX-KRN-2425

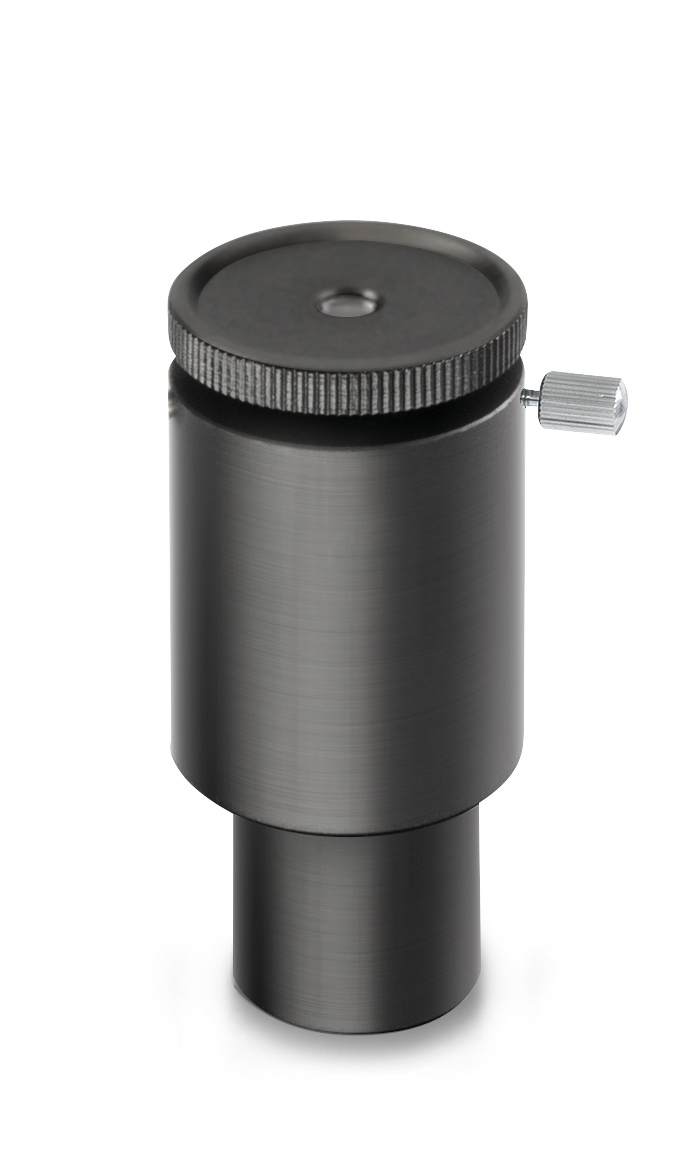

Discover unmatched professionalism and versatility with the OBN 158 Phase Contrast Microscope. Featuring a 20W halogen illumination, Koehler lighting, and a quintuple condenser wheel, this microscope excels in high-quality phase contrast imaging. Ideal for diverse applications including hematology, microbiology, and veterinary analysis, it offers an ergonomic design, large mechanical stage, and modular components for customization. Includes centring eyepiece, dust cover, and multi-lingual instructions.
BrandKern
| Product Name | Phase Contrast Microscope KERN OBN 158 |
|---|---|
| Weight | 1.000000 |
| Part No. | LBX-KRN-2425 |
| Supplier Item Code | OBN 158 |
| Input voltage power supply Max | 100 - 240 V |
| Gross weight | 11 kg |
| Total packaging weight | 1017 g |
| Net weight | 10 kg |
| Tube angle of inclination | 30° |
| Illuminance | Transmitted light |
| Optical system | Infinity |
| Tube type | Trinocular |
| Technical Data | |
|---|---|
| Optical system | Infinity |
| Tube type | Trinocular |
| Ocular magnifications | 10 x |
| Ocular visual field | 20 mm |

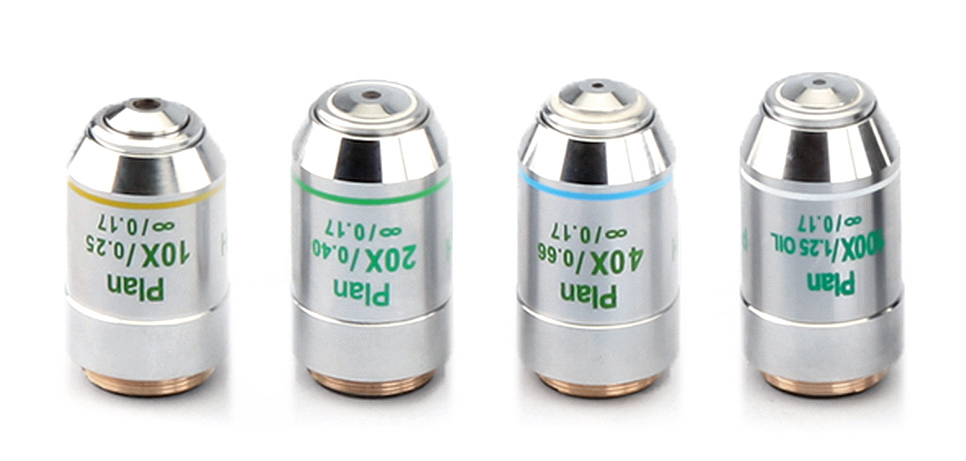

| Standard objectives | 4×, PH 10×, PH 20×, PH 40×, PH 100× |
| Lens quality | Infinity Plan |
| Nosepiece screw-in locations | 5 |
| Illuminance | Transmitted light |
| Illumination type transmitted light | Halogen |
| Illumination intensity transmitted light | 20 W |

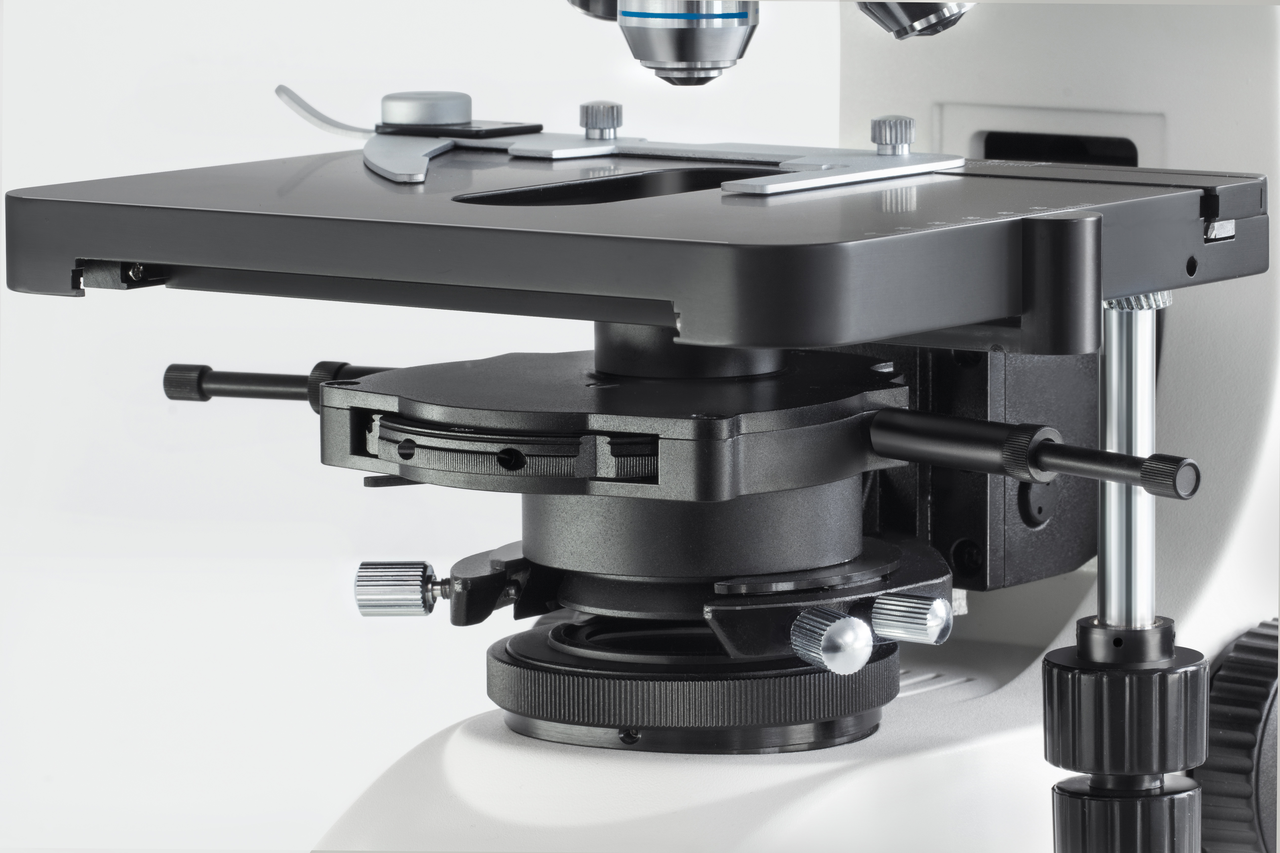

| Condenser type | PH universal rotary condenser |
| Condenser - Aperture | 1.25 |
| Condenser - Montage | Centerable |
| Focusing mechanism | Coaxial coarse and fine drive |
| Fine drive minimum | 0.002 mm |
| Dimension (W×D×H) | 390×200×400 mm |
